Losi 5IVE-T

Losi 5IVE-T

Losi 5IVE-T

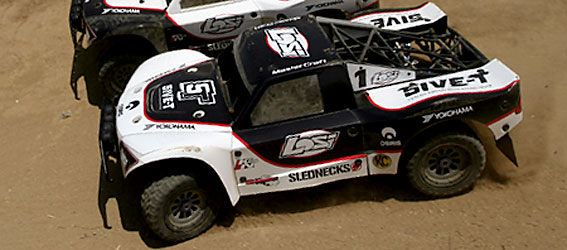

Bigger. Faster. Stronger. The 1/5-scale Losi® 5IVE-T™ 4WD Off-Road Racing Truck is the closest thing to a full-size vehicle in realism, performance and experience. It features a 4WD drivetrain based on the racing-winning, award winning 8IGHT platfrom, Spektrum™ telemetry receiver, installed sensors, and 1/4-scale servos. And since it’s a Bind-N-Drive™ vehicle, you complete it with the DSM® transmitter of your choice. There’s really nothing like driving an RC truck as big as this. Come take it for a spin in all its 4WD glory.

Extra Large-Bore Shocks
These large-bore threaded, aluminum shocks feature over-sized 7mm shock shafts designed to stand up to the punishment of 1/5-scale action. The threaded adjusters allow for fine-tuning while the extra high fluid volume allows for control over the roughest terrain. Pictured: 1/5-scale vs. a standard 1/10-scale shock shaft

Massive 5MM Aluminum Chassis
This is no ordinary chassis. It is based on the award winning, race-proven 8IGHT™ Platform. It has been designed to produce the best performance possible. The chassis plate is constructed of 5mm aircraft-grade aluminum and has been machined to save weight and add strength to provide extreme durability.

Two-Stage Air and Fuel Filter Systems
To ensure a long engine life and proper care, the air and fuel systems are served by a two-stage filtering systems. The air must pass through two different foam filters designed to block as much dust and debris as possible while still maintaining proper flow.

Powerful Losi® 2-Stroke 26cc Gasoline Engine
The engine comes preinstalled with a high-volume muffler and features an electronic ignition, easy adjust carburetor with a built-in choke and fuel primmer. An added bonus is the machined oval inserts that match the chassis cutouts precisely to locate the engine for proper gear mesh.

Innovative Clutch Mount and Housing
The finned aluminum clutch mount adds strength and durability and provides unmatched heat dissipation for increased longevity of the 8,000 RPM clutch. Since it is enclosed, it prevents dirt and debris from entering and fouling the parts. The oversized bearings handle greater loads and are more reliable.

1/4-Scale Heavy-Duty Throttle Servo
The throttle servo performs more than just throttle duties it is also the main source for braking power. This heavy-duty large-scale servo has the power to bring the 5IVE-T to a stop thanks to the functionality of the bias adjustable dual-disk brakes. No 1/10-scale throttle servos here.

Spektrum SR3300T Telemetry Receiver with 2.4GHZ DSM Technology
Equipped with a SR3300T receiver with built in telemetry, the 5IVE-T comes prewired with sensors for engine temperature, speed and receiver battery voltage. Just add a telemetry-equipped surface DSM transmitter and this information will be transmitted back to the driver for real-time vitals of the 5IVE-T.

Multi-Piece Beadlock Off-Road Wheels
These monster wheels are true beadlock wheels with rings on both the inner and outer bead of the tire. With the amount of power the 5IVE-T produces and the sheer size of these tires, these wheels will provide a stable platform for the all-terrain tires. Many popular 1/5-scale tires will mount right on these beadlock wheels.

4WD Power Train with All Metal Gears
The 5IVE-T uses nothing but precision cut or formed, heat treated steel gears throughout the drive train. No plastic gears. These are the strongest and most durable type of gears available and expensive option items on other models.

Full Roll Cage Modeled After Full-Scale Trucks
The realistic cage provides added durability to the assembly absorbing impacts as well as a solid base for the modular body. The unique design allows the body and cage to be removed with only four screws and four body clips in seconds.

Four-Piece Body
The four-piece body individual panels to be replaced in the event that it becomes damaged so an entire body does not need to be purchased to get the vehicle back to the factory look. Clear panels and stickers are sold separately to create your own look or retain the factory schemes.

Product Specifications
Type:4WD Short Course Truck
Scale:1/5
Length:38 in (965.2mm)
Width:20.75 in (527mm)
Height:12.25 in (311.1mm)
Ground Clearance:2 in (50.8mm)
Wheelbase:24 in (609.6mm)
Chassis:5mm thick 7075 T6 aluminum
Suspension:4 wheel independent
Drivetrain:4WD with 3 silicone fluid differentials & centrifugal clutch
Tire Type:Off-Road all-terrain Performance high wear
Motor or Engine:26cc Gas
Radio:BND – Spektrum 3300T Telemetry Receiver
Batteries:3000MaH 6V NiMh receiver pack
Charger:Global AC charger
Wheel Size:4.75 in (120.6mm)
Kit/RTR:RTR
Shock Type:24MM diameter oil filled with compensation bladders
Body:4 piece, Short Course Truck
Ball Bearings:Throughout including steering
Fuel Tank Capacity:800CC
Minimum Age Recommendation:14 years
Experience Level:Advanced
Recommended Environment:Outdoor
Is Assembly Required:No

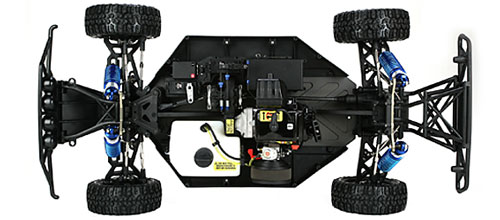

Losi 5IVE-T Chassis Shot

Losi 5IVE-T Chassis Shot

LOSB0019BLKBD
Available for*: $1,599.99
