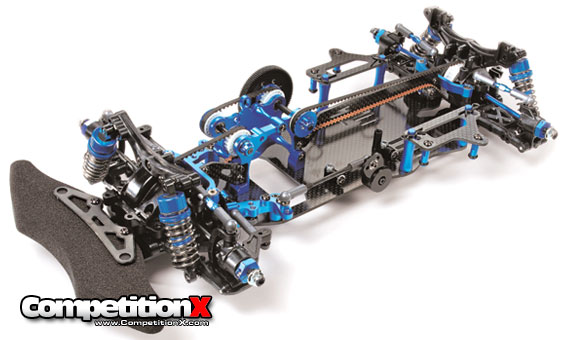

Tamiya TA05-VDF II Limited Edition Drift Chassis Kit

Tamiya TA05-VDF II Limited Edition Drift Chassis Kit

Tamiya TA05-VDF II Limited Edition Drift Chassis Kit

This is an evolved version of Item 84132 TA05-VDF chassis. The original VDF’s basic layout has been kept, but the vertical double frame has been changed to a single frame to offer greater chassis roll flexibility. The carbon fiber lower deck has also been redesigned with more roll flexibility. The 3-belt drivetrain features a new aluminum motor bulkhead which has a lower spur gear position. In addition, the parallel geometry steering setup enables a wider range of setting possibilities. Just like its predecessor, the new VDF II chassis also comes with high-spec parts such as TRF dampers, short reversible suspension arms, front ball differential, and rear direct coupling.

Specifications:
Scale: 1/10 scale
Construction type: assembly kit
Terrain use: on-road
Drive-train: 4WD
Drive type: belt
Drive line: universal
Differential type: direct coupling (spool) & ball differential
Suspension: fully independent double wishbone
Steering mechanism: bell-crank
Shock damper: oil-filled damper
Shock damper material: aluminum
Tire type: not included
Tire tread: n/a
Body material: n/a
ESC: not included
ESC type: N/A
LED Light buckets: no
LED lights: no
Motor type: not included
Bearings: shielded ball bearing
Chassis material: carbon fiber plate
Sticker material: n/a
Adjustable camber: yes
Adjustable toe angles: front and rear
Adjustable ride height: yes
Adjustable gear ratio: yes
Adjustable wheelbase: yes
Adjustable track width: yes
Adjustable shock angle: yes
Anti-squat adjustment: yes
Droop adjustment: yes
Special features: triple belt drive-train, short reversible suspension from TRF416-417, TA05V2 & TB-03

Requires 7.2 battery & charger
Requires radio gear, servo, receiver
Requires wheels, tires, body set, motor, esc
Requires polycarbonate paint

84294 1/10 R/C TA05-VDF II Drift Chassis Kit (Limited Edition)
Availability: June

[nggallery id=”74″]

[source: www.tamiyausa.com]
