CompetitionX Setup Station Carrying Contraption
Having a setup station with you at home or at the track allows you to tune your ride to different track conditions.
Most, setup stations, though, have to be assembled and disassembled each time you use it and, after awhile, becomes a tedious task.
What if you could simply pull them out of your pit box and use them!

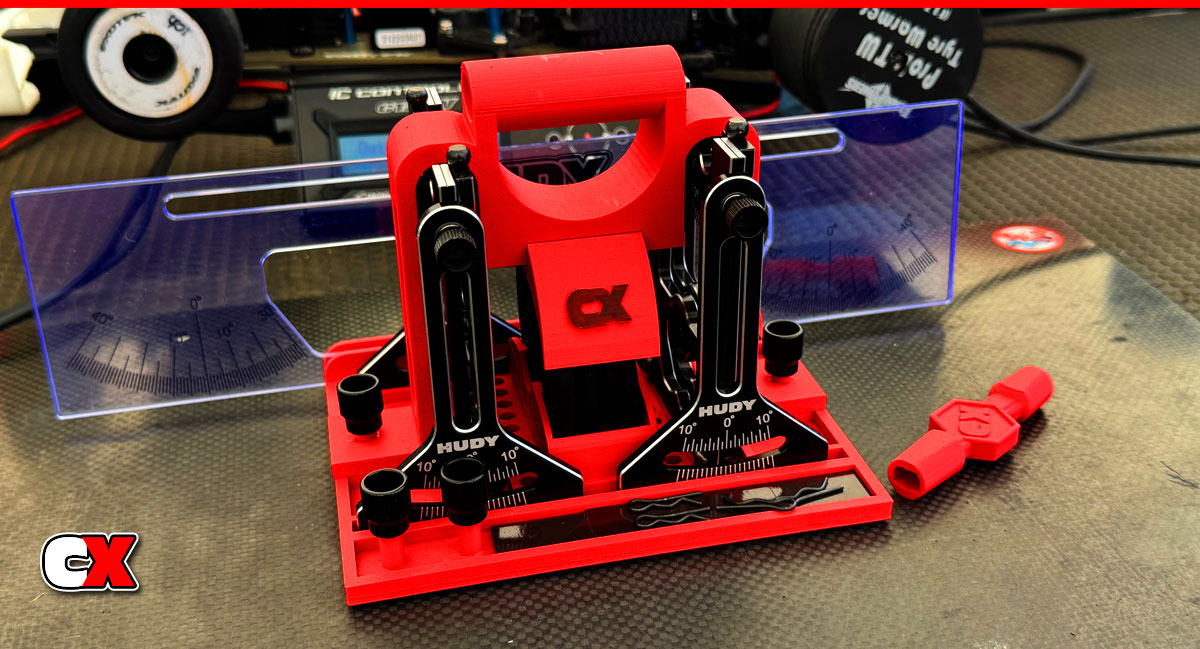

That’s where the CompetitionX Setup Station Carrying Contraption comes into play. All 4 of your setup stands can be transported while assembled – just remove the two thumbscrews, lift off the handle and boom – you’re making adjustments.

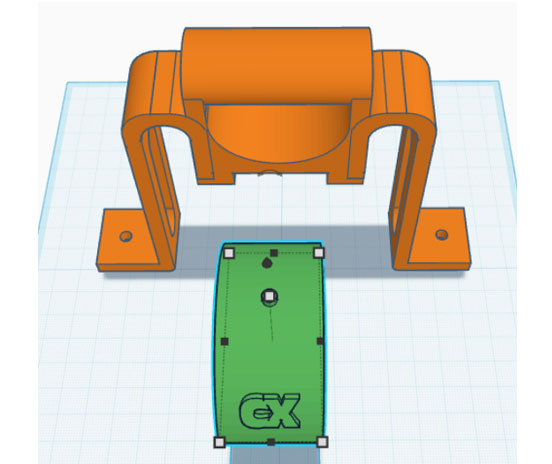

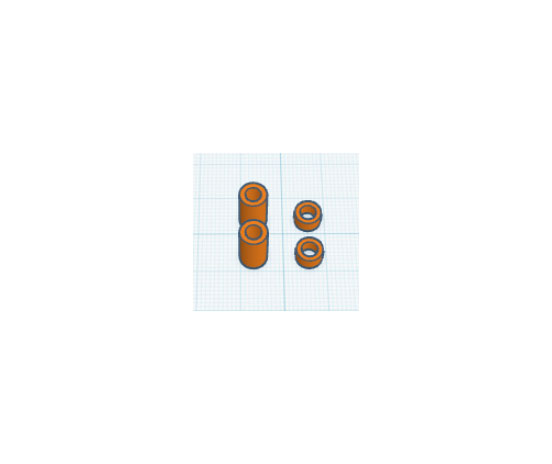

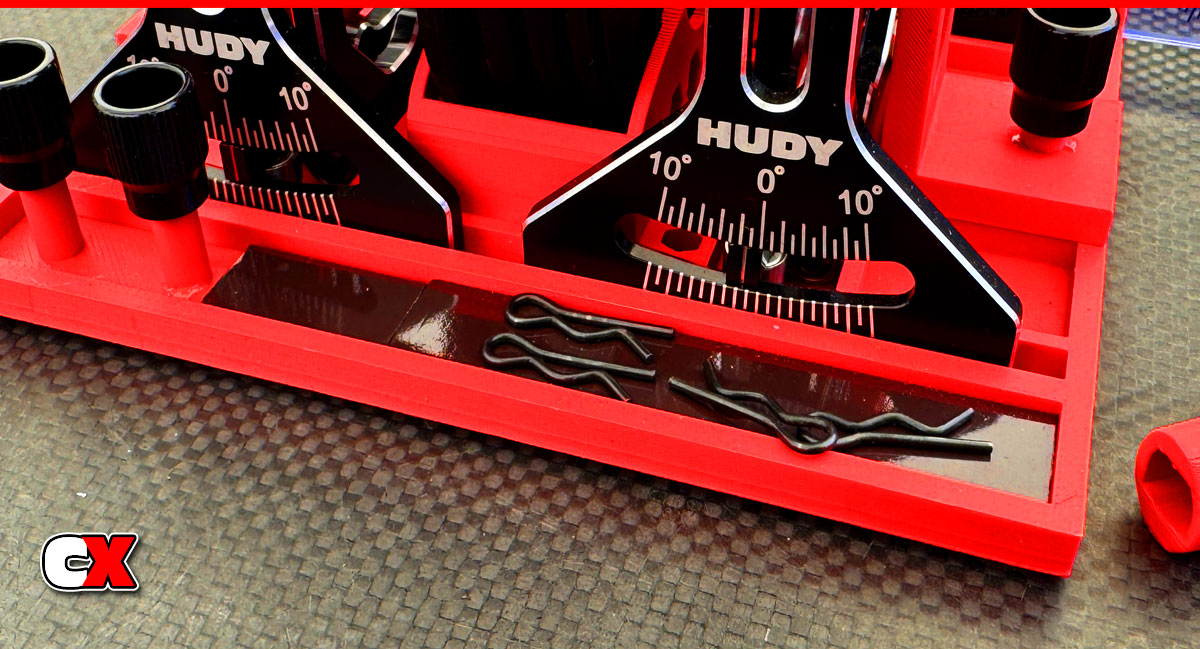

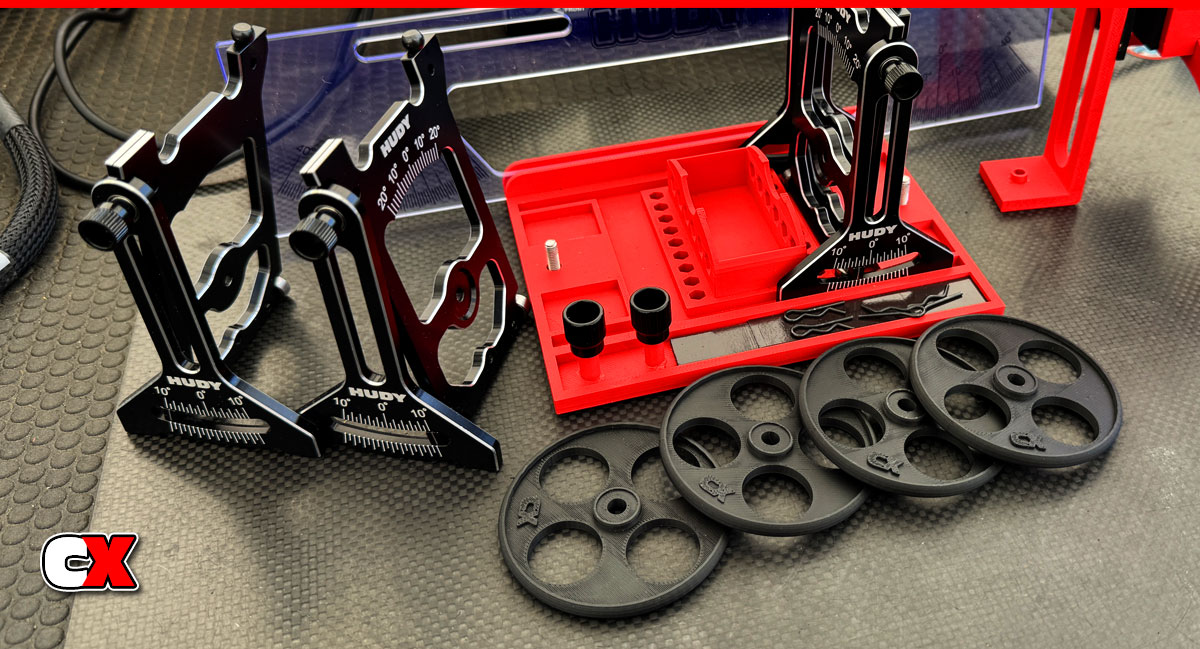

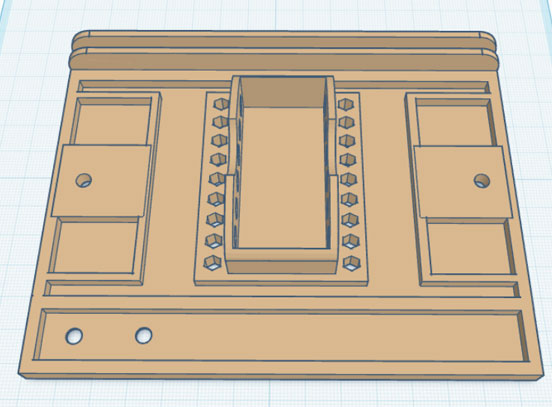

The ‘Contraption’ comes with multiple pieces – the base, the handle (and Setup Wheel cover) and standoffs, which can be used to ‘space’ out the handle and extra thumbscrews (depending on the length of the screws you are using). There is also a spot up front to insert some adhesive-backed magnetic strips for holding body clips. Finally, a channel in the back lets you drop the toe-gauge into place (however not designed for full transport).
Note: The handle was designed for a variety of setup stations, however some may rattle around due to the varying thickness. Adhesive-backed foam padding can be inserted up into the channel to help keep the setup station secure and prevent rattling.
The CompetitionX Setup Station Carrying Contraption is also compatible with most setup wheels, but fits the CompetitionX Setup Wheels perfectly: CompetitionX RC Setup Wheels
Additional items needed:
1. 4x12mm FHCS for securing the handle down (and holding the spare thumbscrews).
2. A set of thumbscrews. I used the Hudy Aluminum Nuts – https://alnk.to/hDuQ4Q0
3. Adhesive-backed magnetic strips
4. Adhesive-backed foam padding.
5. Rubber feet for the bottom.
Download Link
CompetitionX Setup Station Carrying Contraption
