Axial EXO Terra Build – Part 5 – The Chassis

CompetitionX Build Blog

Axial EXO Terra Build
Axial EXO Terra Build

The Build – Part 5
This short segment revolves around the assembly of the chassis and plastic side plates. We will also be attaching the center bulkhead and center differential.

Build Notes:
Have some threadlock ready for the screws that go into the chassis. This will prevent them from backing out when out on the trails.

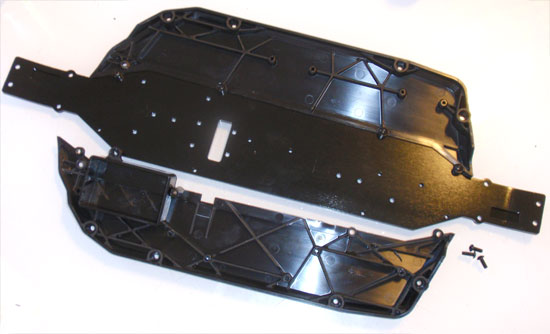

Axial EXO Terra Build - Step 54
Axial EXO Terra Build - Step 54
Attach the plastic chassis rails to the main chassis plate. Use a dab of loctite on the screws to prevent them from backing out.

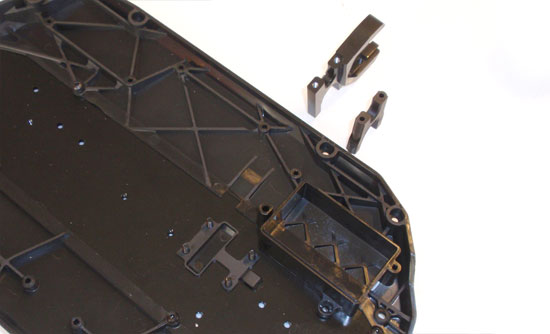

Axial EXO Terra Build - Step 55
Axial EXO Terra Build - Step 55
Place the lower plastic gear cover in place and attach both of the center differential bulkhead pieces. Snug the screws up; do not overtighten. Overtightening could twist the bulkheads and cause a mis-alignment of the center differential.

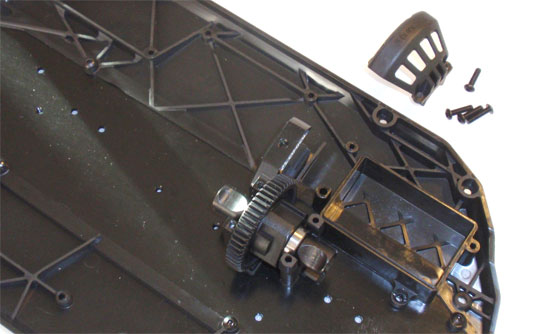

Axial EXO Terra Build - Step 56
Axial EXO Terra Build - Step 56
Drop the center differential into place (note the direction). Place the upper gear cover into place and secure with the four screws.

Part 6 – Assembling the steering.
Back to the Axial EXO Terra Build List
