Tamiya F104X1 Build – Part 5 – Servo Install

Tamiya F104X1 Build

Formula 1 is the pinacle in all of motorsports. Unfortunately, the same can’t be said for Radio Control. However, Tamiya has released their new F104X1 that is sure to change the way people see this segment of RC. The scale realism, the authentic side-by-side, open wheel racing and the sheer pleasure of the final product are all checkmarks in the positive column for this class. Follow along as I do a step-by-step build of this awesome racing vehicle.

Build Notes:
You will be highly modifing the case on your servo. If you don’t want to do this, use a inexpensive servo.

There are other servo savers out there you can use, like one from Kimbrough Racing Products. These are excellent replacements if you are interested in swapping out the stock one.

The Build – Part 5
The servo assembly is a bit tricky and requires some additional love. I thought I’d make this it’s own step.

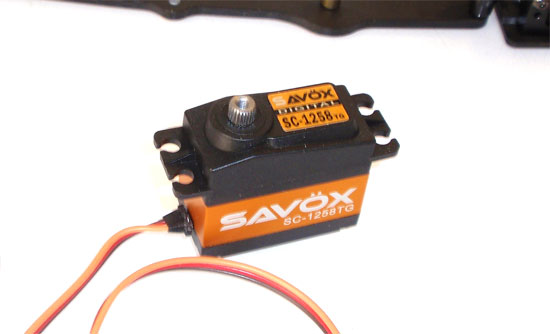

Tamiya F104X1 Build Step 33

For steering duties I’ll be strapping in Savox’s SC1258TG servo. This bad johnny boasts a stellar .08 60 degree transit speed with over 165 oz of torque. Maybe a bit overkill, but this is a Formula 1 car.

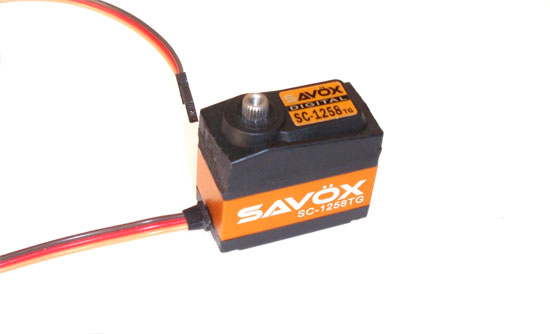

Tamiya F104X1 Build Step 34

Unfortunately, you will need to maim your high-end servo to fit into the F104X1. Start by sheering off the mounting ears on both sides of the servo. You can then use a dremel (or similar) and grind the plastic flat. Both sided will need to be as flat as possible.

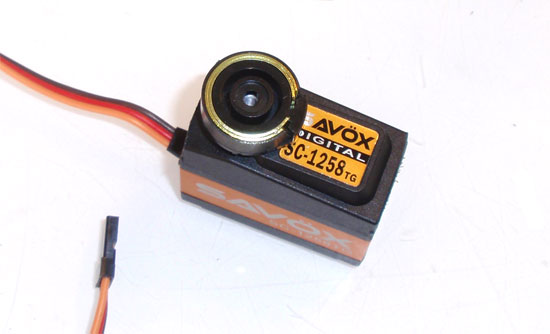

Tamiya F104X1 Build Step 35

Install the correct servo horn (this will depend on your servo) and the three servo saver springs. These can be a little difficult to get on so be patient.

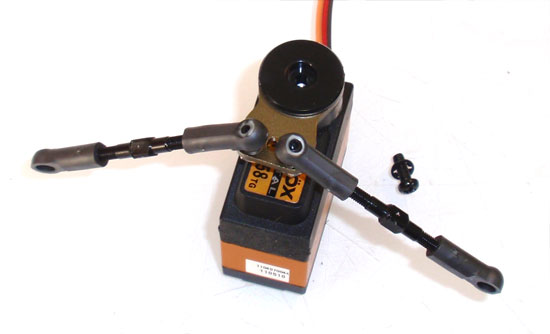

Tamiya F104X1 Build Step 36

Once the horn and springs are installed, slide the assembled aluminum servo horn into place, attach the servo saver cap and add the screw.

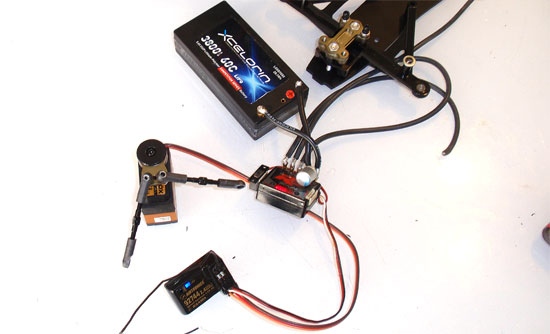

Tamiya F104X1 Build Step 37

At this time, you will want to get all of your electronics together to verify everything is working properly. It would suck to install it all and find out something isn’t working. This will also give you a chance to make sure your servo is properly centered (actually, the main reason we are doing this now).

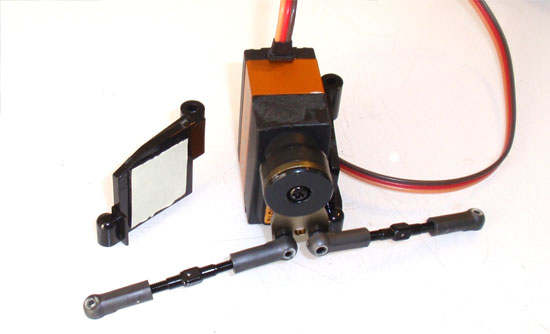

Tamiya F104X1 Build Step 38

Once you’ve verified your servo is properly centered, attach the servo mounts with a small square of double-sided tape. To this on a flat surface so you can mske sure the servo and mounts all line up properly at the bottom.

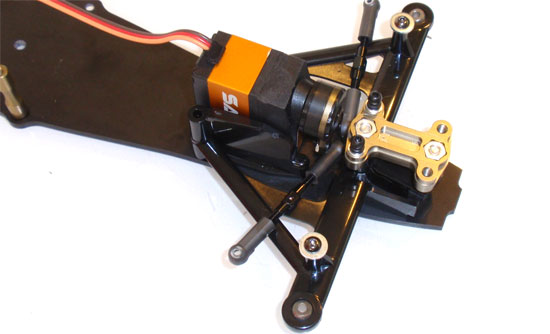

Tamiya F104X1 Build Step 39

Place the servo assembly onto the chassis and attach with the two forward screws. Make sure the backmost holes in the servo mounts line up with the holes in the chassis. You can test fit with the long 3x35mm screws.

Stay tuned for Part 6 – Installing the top deck.
