Traxxas TRX6 6×6 Ultimate RC Hauler | CompetitionX

Traxxas TRX6 6x6 Ultimate RC Hauler | CompetitionX

Traxxas has just announced your next scale rig – the TRX6 6×6 Ultimate RC Hauler!

This big ol’ rig rolls along on their TRX6 chassis, stretched and given a stunning hauler look to trailer around your custom RC build. Features include one-piece steel frame rails, T-Lock differentials, extended 6×6 driveline, high/low 2-speed transmission and portal axles, all topped with a stunning big rig truck body and detailed tow truck bed decked out with black chrome detailing. Oh, and it comes wired with LED lighting!

Electronics include a 2075X metal gear digital servo, XL-5 HV ESC, Titan 21T motor and controlled by a TQi 2.4GHz Radio system.

Quick Stats
Product: Traxxas TRX6 6×6 Ultimate RC Hauler
Part #: 88086-4
Scale: 1/10 Scale
Price: $669.99
Build Type: RTR
BUY NOW: https://traxxas.com/

Features
Large-Scale RC Hauler Body
• Molded black chrome scale details
• Fuel tanks, tool boxes, side rails, and unique bumpers
• Molded side mirrors and roll bar
• Authentic decals
• Full Nylon composite wheel wells
• Detailed multi-piece hauler bed with adjustable wheel chocks

Installed LED Light Kit
• Molded headlights with amber marker lights
• Clearance and marker lights on roof, roll bar, and hauler bed
• Tail lights integrated into rear bumper
• Sealed waterproof design
• 25 individual LED lights
• Regulated voltage for consistent and reliable power output

Trail-tuned XL-5 HV Waterproof Electronic Speed Control
• Fully waterproof design
• Five drive profiles
• Sport Mode — forward / brake / reverse
• Race Mode — forward / brake / no reverse
• Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
• Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
• Crawl Mode — forward / instant reverse – no neutral with 100% hill holding brake
• Traxxas EZ-Set® one-button setup
• Large, efficient heat sink
• Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
• Two stage low voltage protection (LVD)

Motor
• Powerful Titan® 21T reverse rotation motor with internal cooling fan
• Precision, preset gear mesh adjustments
• Motor retention separate from gear mesh

Portal Axles
• Increase ground clearance
• Eliminate torque twist
• Steel gears
• Improve axle geometry and reduce strain on driveshafts

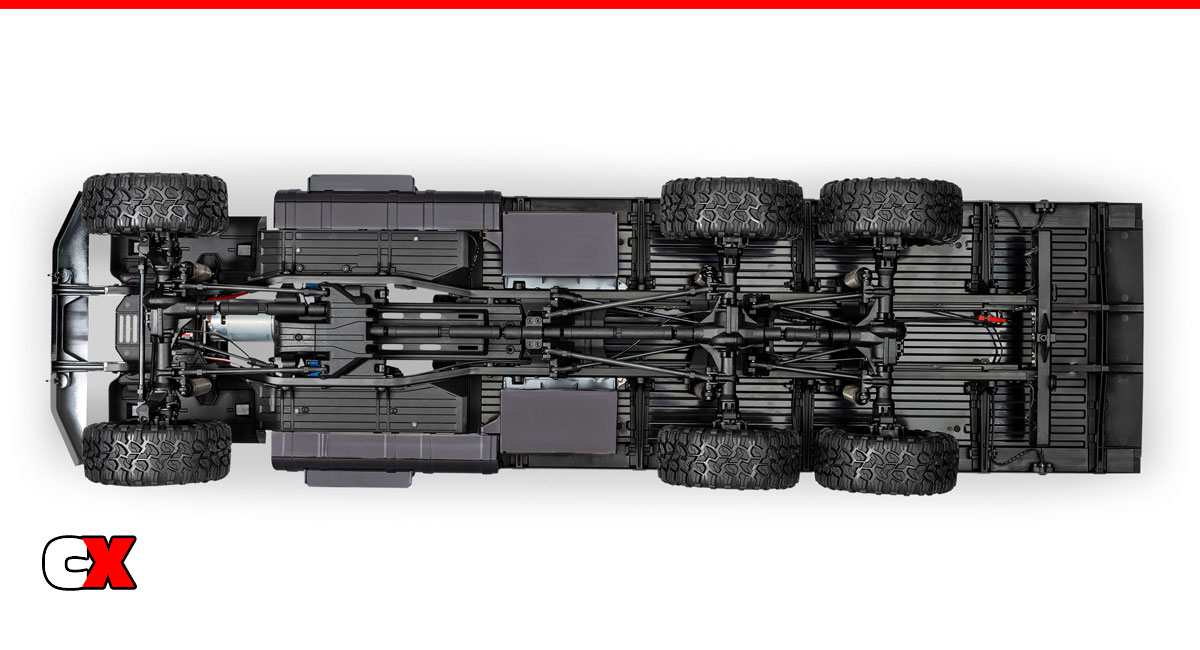

Extended Chassis Design
• Full-length 30” steel frame rails
• 1.5 mm thick for increased torsional rigidity
• Rails run from bumper to bumper
• Extended wheelbase for full length tow bed
• Bearing-supported intermediate driveshaft
• Wire management clips integrated into frame rails

Drivetrain
• Full-time shaft driven 6-wheel drive
• Tough 6 mm stub axles
• Steel front CV driveshafts
• Hardened steel rear axle shafts
• Remote locking steel gear differentials with cable-actuation
• Steel gear transfer case

Aluminum GTS Shocks
• Oil-filled coilover GTS shocks
• Silver-anodized aluminum bodies
• Threaded bodies with collars easily adjust ride height
• Silky smooth damping for the toughest trails
• O-ring cap seal and dual X-ring shaft seals

Transmission
• Two speed high/low range with remote shifting
• Dual horizontal shafts
• Twin friction plate slipper clutch
• Easily removed for servicing

Steering
• Chassis mounted 2075X metal gear digital servo
• Steel servo horn
• Superior 45° steering angle
• Direct steering (no servo saver)
• Steering geometry corrected for bump steer

Suspension
• Front — 3 link with panhard
• Intermediate — Dual triangulated 4 link
• Rear — Dual triangulated 4 link
• Heavy-duty rod ends with steel hollow balls
• 5mm diameter lower steel link rods with 4 mm threaded ends

Wheels and Tires
• 2.2” black chrome big rig wheels with hub inserts
• 2.2” Canyon RT all-terrain tires with foam inserts
• Sticky S1 rubber compound
• 12mm steel hex

Transmitter
• TQi™ 2.4GHz 4-channel transmitter
• Traxxas Link enabled
• Telemetry ready #6533 5-channel micro receiver with failsafe
• Automatically stores and loads settings for up to 30 Traxxas Link enabled models
• Exclusive Cruise Control feature for extended trail driving
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle endpoints
• High 13ms frame rate and near-zero latency for responsive control

What We Like:
Other than the fact it looks absolutely stunning, the new Ultimate RC Hauler is sure to be on the top of scaler’s must have list. We love that Traxxas didn’t half-ass it – they properly extended the chassis and gave the 6×6 plenty of detail to match what a real-world hauler should look like. Wheels, tires, fuel tanks, side storage and LED lighting – just a well done job on this rig!

What We’re Not Sure About:
Well, if we have to punish it for one thing it would be that the bed doesn’t work like a real hauler. Yet. I’m sure someone will figure it out.

For more information, please visit: traxxas.com
