Team Associated RC8.2 Build – Part 5 – Rear Bulkhead
Team Associated RC8.2 Build
The 1/8th scale nitro class is one of the biggest and most prestigious racing classes in our industry. Being one of the top dogs in this class, Team Associated has had quite a bit of success with their RC8 nitro buggy. Recently, the A-Team conjured up some new parts for their 1/8th scale for the Worlds and were very happy with it’s success. I will be doing an online build of this new generation buggy, the RC8.2. Enjoy.
Build Notes:
There are few areas where you will be screwing into aluminum objects. Don’t forget your loctite!
Pay close attention the installation of you rear diff. It is crucial that it is installing in the correct direction.
The Build – Part 5
The rear bulkhead builds much like the front one. This should be a quick and easy step.

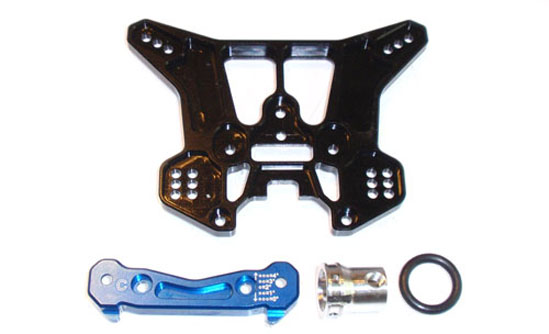

Team Associated RC8.2 Build Step 56
Start off this step by opening up your FF bag. Once again, you’ll see the included Factory Team parts in here.
Team Associated RC8.2 Build Step 57

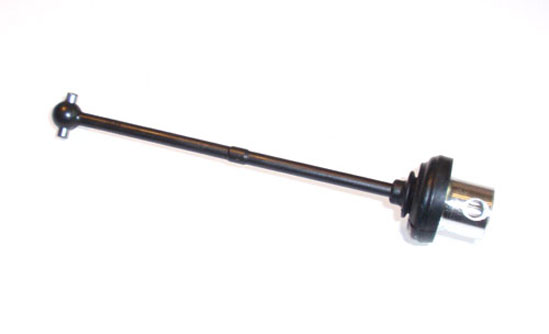

Build your rear CVA exactly like you built the front one. Make sure to use plenty of grease on both the ball end (when installing the boot) and the joint end.
Team Associated RC8.2 Build Step 58

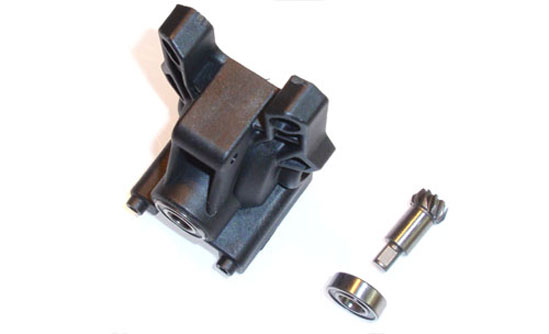

Insert the two bearings and the diff pinion gear into the rear bulkhead.

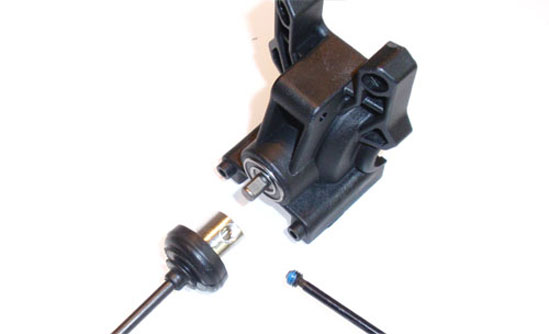

Team Associated RC8.2 Build Step 59
Attach the rear CVA assembly to the diff pinion gear. Don’t forget your loctite here on the set screw.
Team Associated RC8.2 Build Step 60

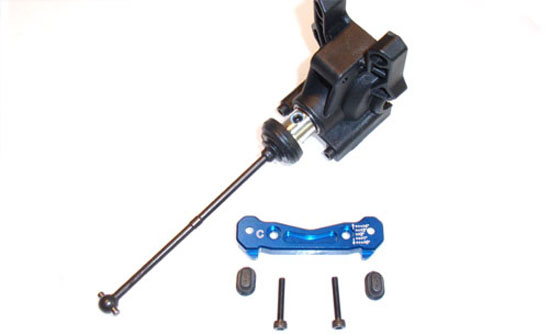

Time to install the aluminum C-plate. First off, push the 2-dot hinge pin bushings into place, making sure the dots are in the down position. Attach the block to the rear bulkhead.
Team Associated RC8.2 Build Step 61

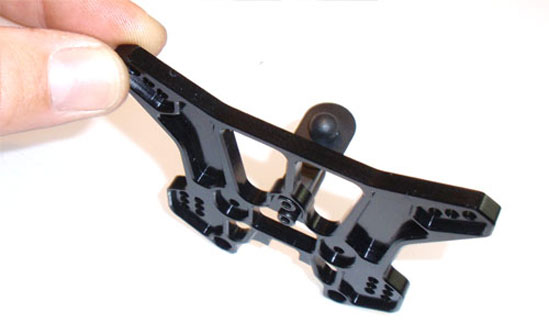

Install the rear body mount to the rear shock tower. Pay close attention to the direction of the tower. The machined side should be AWAY from the mount.
Team Associated RC8.2 Build Step 62
Attach the shock tower to the bulkhead.

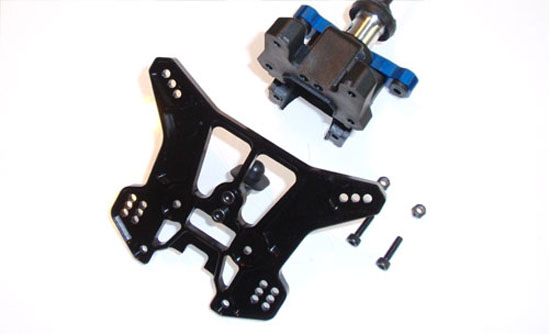

Team Associated RC8.2 Build Step 63
Grab your rear diff and slide a shim onto each side.

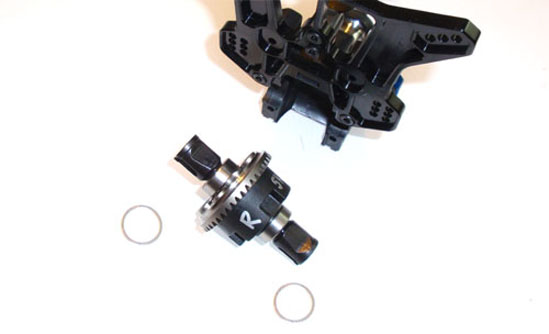

Team Associated RC8.2 Build Step 64

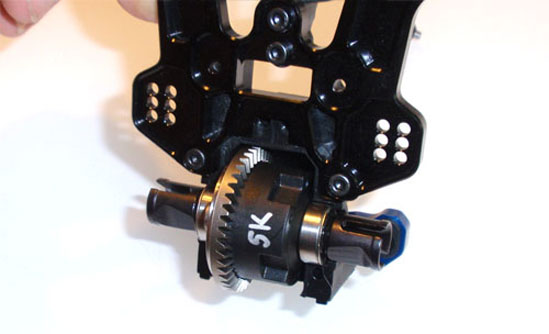

Insert the diff into the rear bulkhead. Note the direction of the diff (VERY IMPORTANT) and make sure the shims are INSIDE the rear bulkhead.
Team Associated RC8.2 Build Step 65

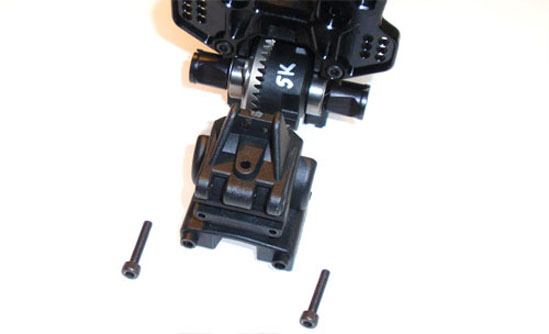

Attach the bulkhead cap. Make sure you don’t pinch the diff shims.
Team Associated RC8.2 Build Step 66

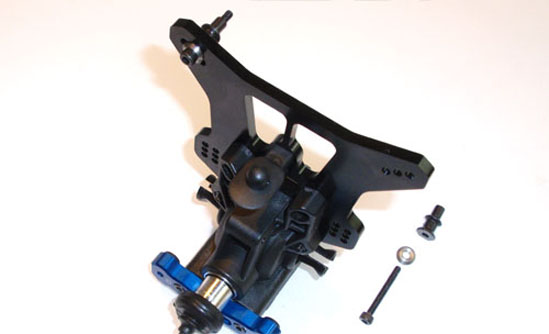

Screw the upper shock mounts into place. Use a little loctite here to help prevent the screws from loosening up.
Team Associated RC8.2 Build Step 67

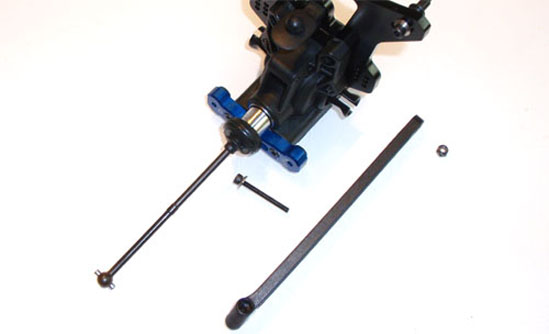

Finally, attach the rear bulkhead brace. This might need to swivel while installing this bulkhead to the chassis so don’t tighten this screw down all the way yet.
Stay tuned for Part 6 – Assembling the rrear suspension.
