The Build – Part 6
The rear suspension is a little time consuming but not hard at all. Take your time, don’t forget your loctite and grease and you’ll be good to go.

Build Notes:
The rear hub carrier interferes with the rear suspension arm. Check the step below to remedy this.

Team Associated RC8.2 Build Step 68
Team Associated RC8.2 Build Step 68

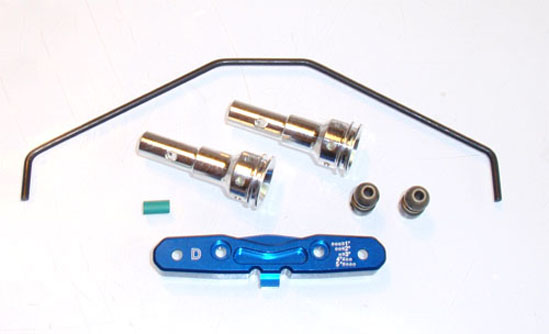

Open your GG parts bag. This bag contains the FT upgrades; anti-roll bars, blue aluminum D-arm mount and the lightweight outdrives.

Team Associated RC8.2 Build Step 69
Team Associated RC8.2 Build Step 69

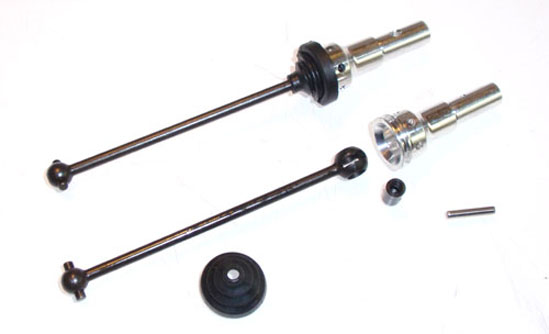

Build the rear CVA’s like exactly how you built the front ones. Remember to use a liberal amount of grease.

Team Associated RC8.2 Build Step 70
Team Associated RC8.2 Build Step 70

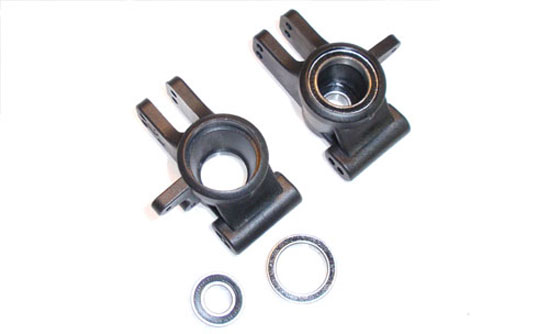

Insert the bearings into the rear hub carrier. Make sure they site flush in the carrier.

Team Associated RC8.2 Build Step 71
Team Associated RC8.2 Build Step 71

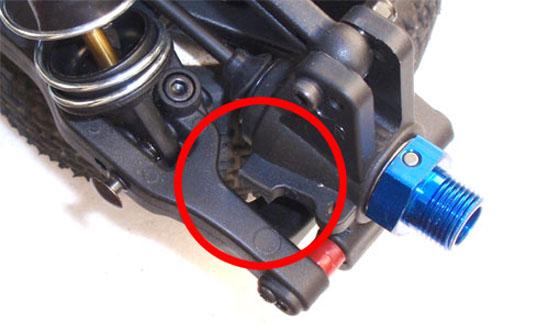

Team Tip: There is a slight interference issue with the rear arms and hub carrier. As is, the rear does not extend to full droop. Trim off a little bit of the hub carrier tab to fix this. Updated arms are on the way from AE.

Team Associated RC8.2 Build Step 72
Team Associated RC8.2 Build Step 72

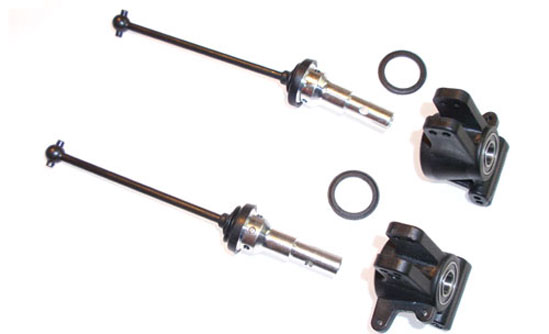

Insert your CVA’s into the rear hub carriers. Don’t forget the bearing shields.

Team Associated RC8.2 Build Step 73
Team Associated RC8.2 Build Step 73

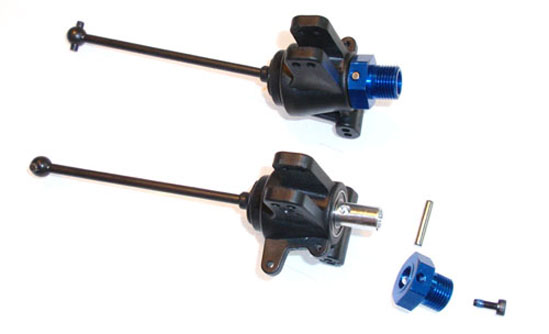

Install the wheel hexes. Use a little loctite on the screw to secure it in place.

Team Associated RC8.2 Build Step 74
Team Associated RC8.2 Build Step 74

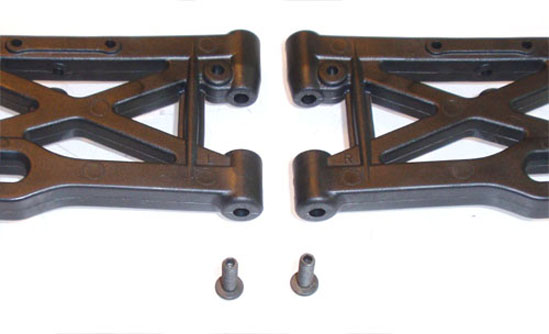

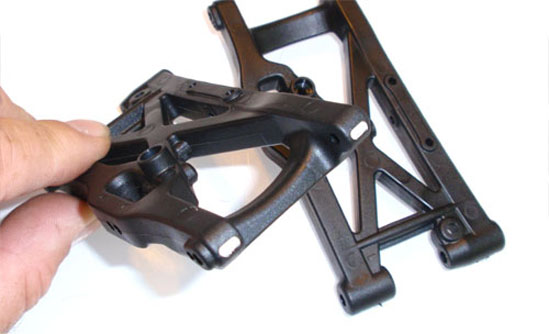

After you remove them from the parts tree, trim any remaining flashing off of the suspension arms.

Team Associated RC8.2 Build Step 75
Team Associated RC8.2 Build Step 75
Install the droop screws into the suspension arms. Note the specialty screws used and the direction they insert into the arm.

Team Associated RC8.2 Build Step 76
Team Associated RC8.2 Build Step 76

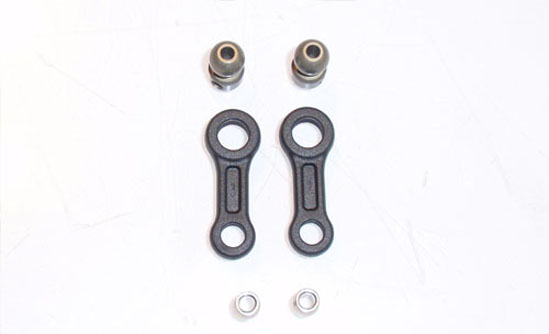

Assemble the anti-roll bar links…

Team Associated RC8.2 Build Step 77
Team Associated RC8.2 Build Step 77

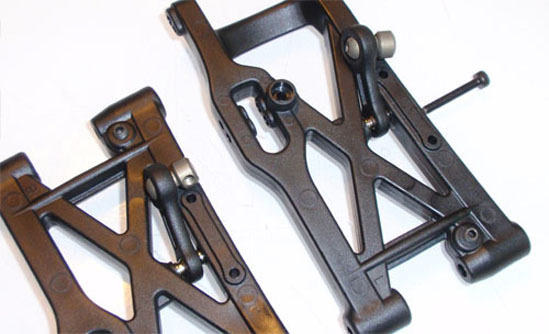

…and attach them to the suspension arms. Note the direction of the upper pivot ball. The bigger end should be towards the outside of the arm.

Team Associated RC8.2 Build Step 78
Team Associated RC8.2 Build Step 78

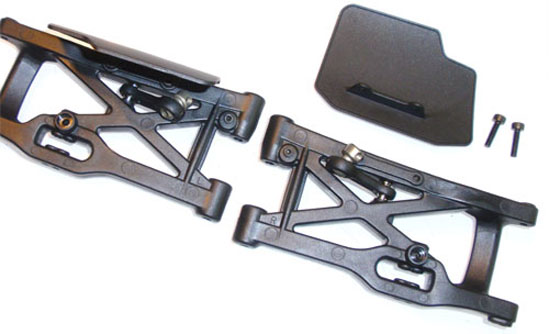

Attach the mud guard. These are direction so pay attention that you are installing them on the correct sides.

Team Associated RC8.2 Build Step 79
Team Associated RC8.2 Build Step 79
Again, thanks AE for pre-building these. My fingers thank you even more.

Team Associated RC8.2 Build Step 80
Team Associated RC8.2 Build Step 80

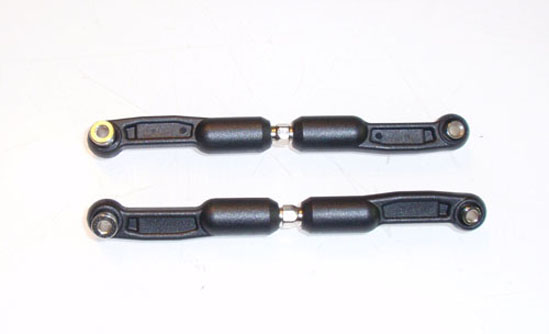

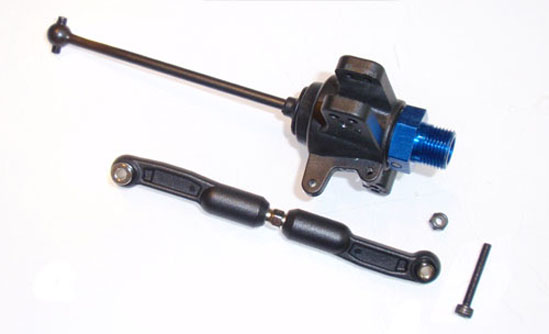

Attach the turnbuckles to the hub carrier. Note the orientation of the turnbuckles…they are directional.

Team Associated RC8.2 Build Step 81
Team Associated RC8.2 Build Step 81

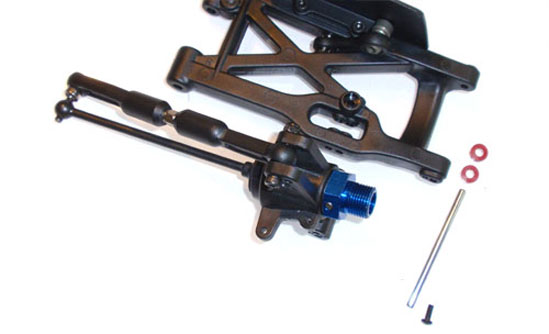

Attach the hub carrier to the rear suspension arm. Note the direction. For the starting setup, insert the two red spacers towards the rear of the arm, or on the side away from the mud guard.

Team Associated RC8.2 Build Step 82
Team Associated RC8.2 Build Step 82

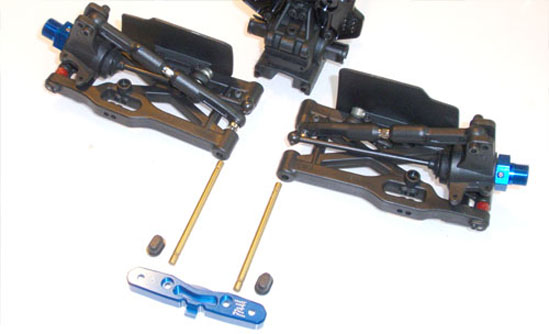

Attach the arms to the rear bulkhead. The hinge-pin inserts are a #1 dot so they aren’t directional.

Team Associated RC8.2 Build Step 83
Team Associated RC8.2 Build Step 83

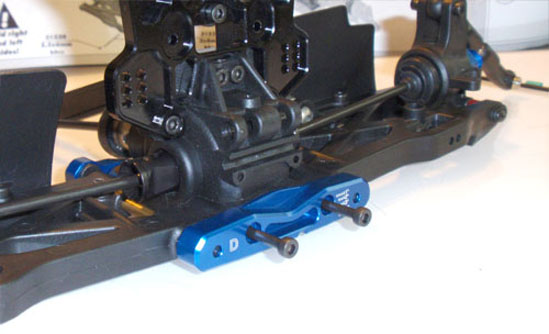

The two 50mm screws lock the rear arm mount into place. At this time, check to make sure your suspension arms have free movement. If they don’t, disassemble and find the issue. They need to have free movement.

Team Associated RC8.2 Build Step 84
Team Associated RC8.2 Build Step 84

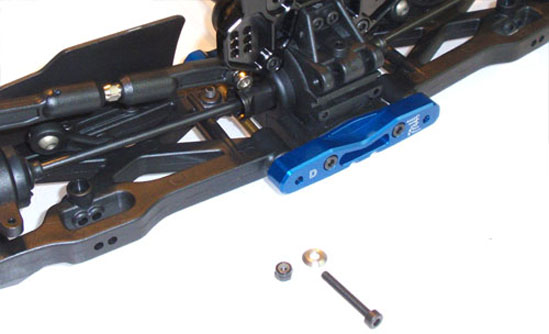

Slide the CVA bone into the diff outdrive and screw the turnbuckle to the shock tower.

Team Associated RC8.2 Build Step 85
Team Associated RC8.2 Build Step 85

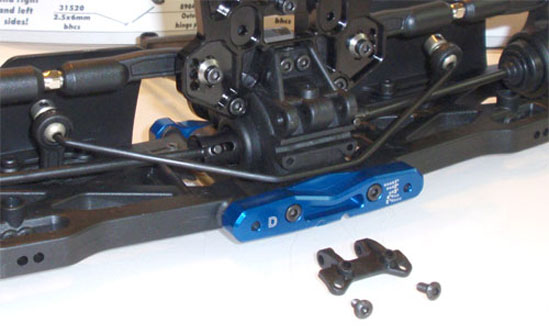

Slide the anti-roll bar into the pivot balls in the arm and set screw into place. Use a dab of loctite to prevent them from vibrating out. Next, attach the anti-roll bar mount.

Team Associated RC8.2 Build Step 86
Team Associated RC8.2 Build Step 86

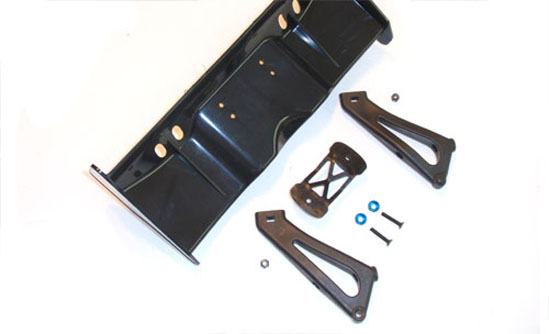

Assemble the rear wing…

Team Associated RC8.2 Build Step 87
Team Associated RC8.2 Build Step 87

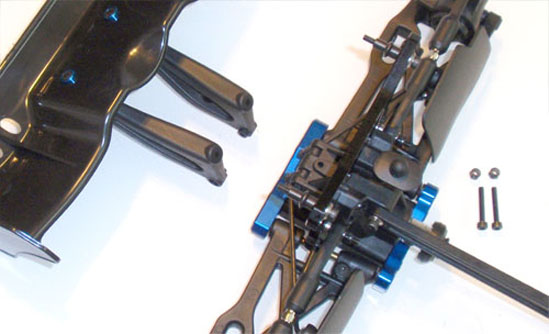

…and attach it to the rear bulkhead. Put a dab of grease on the locknuts if they don’t stay in place while assembling.

Team Associated RC8.2 Build Step 88
Team Associated RC8.2 Build Step 88

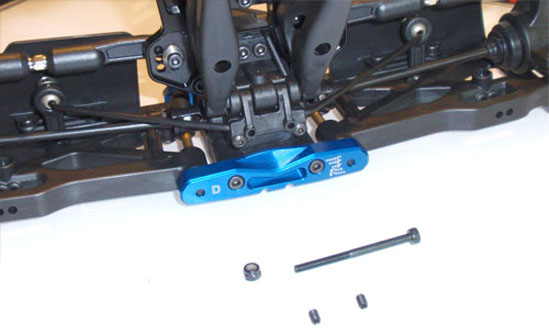

Attach the through-screw to secure the wing in place. Insert the pair of set screws, tightening down until they touch the anti-roll bar, then back off 1/2 turn. All you want to do is take up the slack in the mount, not prevent movement.

Team Associated RC8.2 Build Step 89
Team Associated RC8.2 Build Step 89

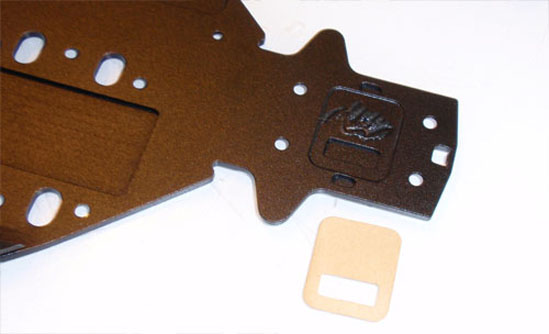

Place the gearbox gasket onto the chassis. Apply a little grease to hold it in place. A little dab will do ya.

Team Associated RC8.2 Build Step 90
Team Associated RC8.2 Build Step 90

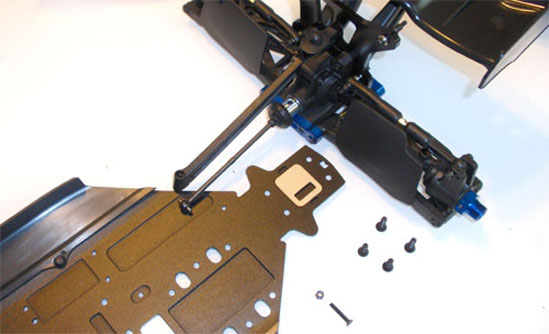

Attach the rear suspension to the chassis with the 4 12mm screws. Swing the chassis brace down and secure it with the 18mm screw. Wah-lah, rear suspension done!

Part 7 – Assembling the center differential.
